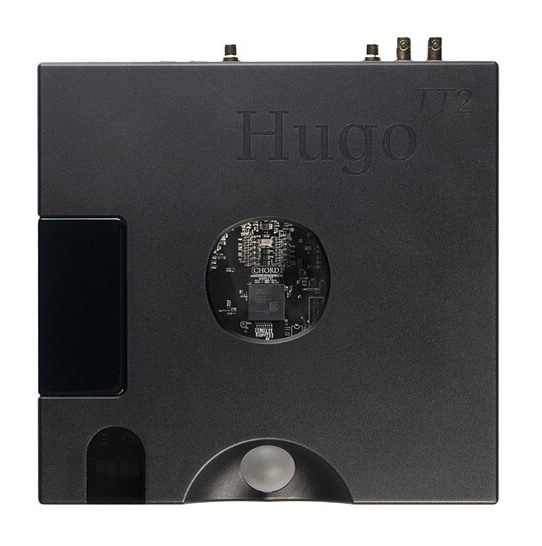

Chord Electronics Hugo TT 2 - DAC 32bit/768kHz avec DSD512 et amplificateur pour casques

4'859.00 CHF
5'400.00 Économisez 541.00
Video
Le Hugo TT2 reprend les recettes qui ont fait le succès du Hugo 2. mais il est encore bien meilleur et plus avancé technologiquement: Chord à doublé sa puissance de calcul. Le Hugo TT 2 établit une nouvelle référence pour les DAC et se positionne en tant que dauphin de DAVE, le TOP incontesté des convertisseurs numériques vers analogique.

Afin de vous permettre de profiter au maximum de la musique que vous possédez déjà, tous les extraordinaires DACs Chord subliment également vos fichiers 16-bit / 44.1 kHz (MP3, AAC, FLAC, WAV, AIFF, etc.). Ils sont aussi les compagnons idéaux de vos services de musiques en ligne comme Tidal, Spotify, Qobuz, Apple Music, etc.
Réserver une ecoute
Hugo TT 2 has been radically redesigned from the ground up, not only with beautiful new casework by Chief Designer, John Franks, but with 5x the processing power of the original Hugo TT and double that of the multi-award-winning Hugo 2. Hugo TT 2 distils over 20 years of digital development by Rob Watts and takes advantage of the very latest technology.

As expected, it delivers radically improved technical specifications and measurements across the board and exhibits drastic sonic benefits over its predecessor with 768kHz PCM and DSD 512 playback. Hugo TT 2 sets a new benchmark in table top audio, only being eclipsed by DAVE.

Delving deeper, in comparison to the 256-tap filters that traditional chip DACs may run at, Hugo TT 2’s beating heart is an infinitely more powerful Xilinx Artix 7 FPGA, custom-coded by Chord Electronics’ Rob Watts, with 86x 208MHz cores running in parallel to create an advanced 16FS WTA 1 filter with 98,304-taps. Double that of its multi-award winning transportable brother, Hugo 2 (49,152). Hugo TT 2 also benefits from an upgrade from a 4-element design to a 10-element design, which works in harmony with the radically upgraded FPGA and code to deliver unrivalled audio.

A brand new high-power discreet output stage coupled with second-order noise-shaping integrated between the DAC output and filter is also employed to massively reduce distortion. Further improvements have also been made to the power delivery. Hugo TT 2 eschews the Li-Po battery power supply of the original and ushers in six super capacitors capable of delivering huge, linear dynamic currents when the music demands it with peak output of 5A, 9.3V RMS.

Hugo TT 2 also brings home the much loved four-stage user-selectable filter controls introduced with Hugo 2 and retains the three-stage user-selectable digital crossfeed function for headphone users who want to improve the perception of depth, similar to that of speakers.

Spécifications:
Materials: Precision machined aluminium casing with steel ball bearing buttons, gloss black acrylic signal window, glass viewing portal, and dot matrix display. Available in a choice of two colours – silver, and satin black
Tap length filter: 93,304-tap 16FS WTA 1 – 10 element design
Connectivity (input): 1x USB Type-B, 2x DX (expansion inputs), 2x Coax BNC, 2x Optical & Bluetooth
Connectivity (output): Stereo XLR, Stereo RCA, 2x 6.5mm Headphone jack & 1x 3.5mm Headphone jack
PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, and 384kHz.
DSD support: DSD 64 to DSD 512 – native via Windows
Volume control: Digital
Line-level mode: Activated via dual press of Input and Crossfeed upon startup
Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS



Spécifications techniques

Plage dynamique : 127dB ‘A’ weighted
Formats compatibles : DSD, DXD, FLAC, PCM, AAC, AIFF, ALAC, MP3, CD, WAV, WMA
Type de DAC : Chord Custom FPGA DAC
DSD Natif : Oui
Distortion (THD) : 0.00008% @ 2.5 V 300Ω; 0.00016% @ 6 W 8Ω
Autonomie : Sans Batterie
Tension d'alimentation : 15v DC
Type d'alimentation : Alimentation à découpage
Temps de recharge : Sans Batterie
Contrôle de volume : Oui

Connexions audio

Entrée RCA : Non
Entrée XLR : Non
Entrée USB : 1x USB Type-B
Entrée numérique : 1x USB Type-B, 2x DX (expansion inputs), 2x Coax BNC, 2x Optique & Bluetooth
Sortie casque : 1 x 3,5mm et 2 x 6,35mm
Sortie Pre out RCA : 1
Sortie Pre out XLR : 1
Sortie RCA : 1
Sortie XLR : 1
Sortie numérique : Non
Bluetooth : Oui, Bluetooth (Apt X) (Blue): 44.1kHz – 48kHz – 16bit

Connexions données

Dimensions du produit

Dimensions (HxLxP) : 52 x 238 x 235mm
Accessoires : 1 télécommande, 1 transformateur électrique 1.5m 12v 0.5a, 1 câble USB-A -> USB-B 1m50 et le manuel d'utilisation
Finition : Argent ou noir
Poids : 2,53 kg
Garantie : 3 ans
