Bricasti Design M-15 - Stereo Power Amplifier 2 x 125W

20'000.00 CHF
The Bricasti M 15 stereo amplifier is the beating heart of any system and in particular, a Bricasti Design system. Like its bigger mono-block brother the M28, the M15 delivers heaps of power at critical stages, forging a sonic path of least resistance all the way from source to the speaker. This can be heard and felt and is in part thanks to its fully differential / balanced architecture.
Precise control:
The power amplifier is a very critical part of the audio chain. It has to take the incoming signal and amplify it and most importantly, deal with the load of the loudspeaker and control its back EMF with precision. The sound of the M15 is intended to be transparent and revealing with low distortion, and fully dynamic with no sense of limits and compression in the reproduction, on any loudspeaker.

Balanced power:

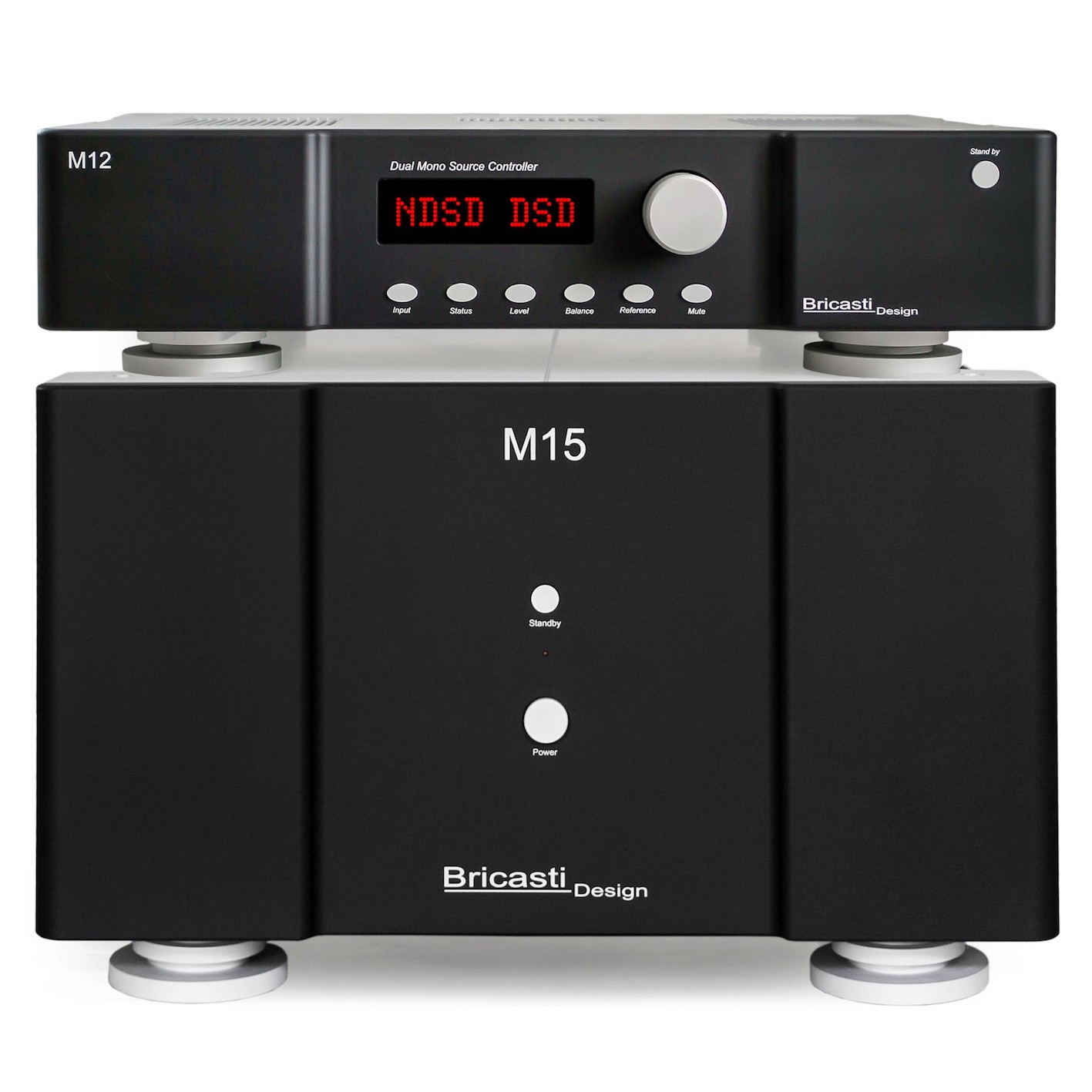

The M15 stereo power amplifier is a true reference design in analog power amplification, an uncompromising design offering extremely low distortion with moderate power and a unique truly balanced topology rarely seen in the industry. When combined with our M1 DAC or M12 Source Controller driving the M15 one can achieve a fully differential signal path, from the converter to the loudspeaker.

Modern application:
The intention of the M15 is to integrate seamlessly into your existing system while allowing for a more compact form factor. A unique feature like trim control lets you properly gain stage the M15, critical with todays digital sources driving the amplifier directly. You also enjoy the same sonic benefits of the M28 monoblock with the stillpoints isolation designed directly into the feet.

Handcrafted in the USA:
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.



Spezifikationen

Anzahl der Kanäle : 2
Anzahl der Ausgangs Lautsprecher : 2
: 125W into 8 ohms, 250W into 4 ohms, 500W into 2 ohms
Ausgangsstrom Max (Spitze) : N/A
Bridgeable : Nein
Verstärker Typ : Klasse B
Frequenzgang : 10hz-150kHz, within 0.5db
Verzerrung (THD) : THD+N less than 0.005% 20hz-20kHz at full rated power into 8 and 4 ohms
Stromversorgung : 100, 120, 220, 230, 240 VAC, 50 Hz - 60 Hz
Artige Spannungsversorgung : NA
Optionale Module : Nein

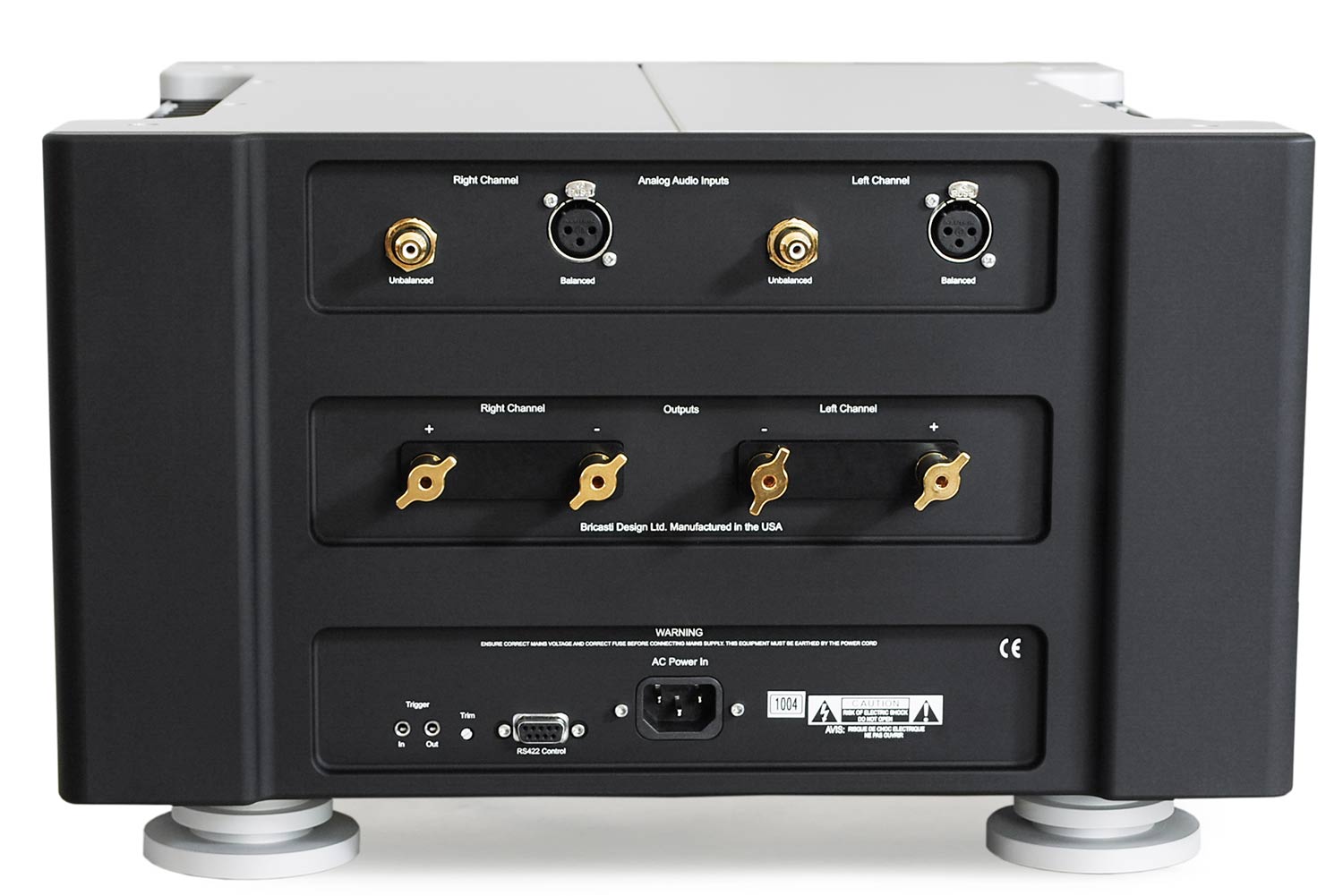

Audio Anschlüsse

Cinch-Eingang : 1
XLR eingang : 1
Cinch ausgang Pre out : Nein
XLR Ausgang Pre out : Nein

Daten Anschlüsse

Trigger : TRS connector for 5V external trigger
Control bus : Nein
Die automatische Erkennung von Signal : Ja

Größe

Größe (HxBxT) : 26 x 42 x 45cm
Veredelung : Aluminum
Gewicht : 40 kg
Garantie : 5 ans
