Bricasti Design M-5 - Network player with digital outputs

3'200.00 CHF
The Bricasti M 5 network player is a network interface and media renderer that connects to your server via a local area network. With wide support for DNLA and other popular network protocols, the M5 delivers pristine lossless audio from your network to your Digital to analog converter; your music server can go anywhere you choose. Connects to your LAN via Ethernet and optional Wi-Fi, with SPDIF, AES outputs supporting sample rates up to 192k PCM, DSD 64 and DSD 128 over USB. A regionally approved WI-FI adapter is required for WI-FI functionality and is not included.
Eine Demo reservieren
Play from anywhere:
The M5 plays ethernet wired or wirelessly over your data network. In addition, audio listeners have become accustomed to having a computer server and additional storage drives directly in the listening environment. This can get messy with the added cables and power supplies that accompany them. With the M5 Network Player you can find new freedom from your server devices and place them anywhere on your network, away from your system.

Purity of sound:
The M5 is a dedicated DLNA and Roon Ready audio media renderer. Simple, raw data is served to the M5 over the network from your NAS or server and only then does data become rendered as a real-time audio stream to its SPDIF, AES or USB outputs, connecting to your D/A like our M1SE to do its magic. Many computer servers play dual roles as archival systems and players but not when you have a dedicated player like the M5. With the M5 dedicated player the audio rendering is in the M5, and close to its D/A destination for a pure, noise free experience that we believe is exceptional.

A class unto itself:

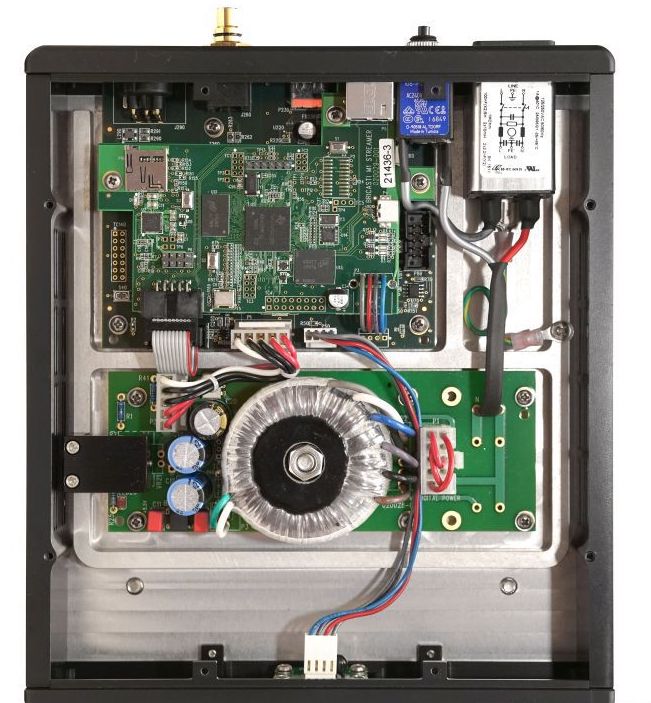

The M5 is built solid. The chassis is milled from solid aluminum with beautifully rounded corners all the way around. Inside the chassis lies the Bricasti media player and powered by the same linear power supply as found in the M1 digital to analog converter for superb low noise performance under the most demanding circumstances. The M5 takes the Network player experience to the next level, and no add-ons are needed with the M5, it comes complete.

Handcrafted in the USA:
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.



Spezifikationen

kompatible Formate : Over 100 different file types including: AAC, AIFF, ALAC, ATRAC, Au, AVI, Dolby Digital, DSDiff, DSF, DV, DVD, FLAC, FLV, IFF, M1V, M2T, M2V, M4A, M4V, Matroska, MJPEG, Monkey's Audio, MP1, MP2, MP3, MP4, MPC, Music Tracker files, Ogg, OpenMG, Opus, Quicktime, RealMedia & RealAudio, Sidplayer files, Speex, SWF, video game media files, W64, WAV, WMV & WMA, Xvid, 3GPP & 3GPP2.
Abtastrate : 192k PCM, DSD 64 und DSD 128 mit USB
Typ DAC : Ohne DAC
Interne speicher : Nein
Ripper : Nein
Verzerrung (THD) : N/A
Autonomie : Ohne Batterie
Stromversorgung : 100, 120, 220, 230, 240 VAC, 50 Hz – 60 Hz
Artige Spannungsversorgung : N/A
Abklingzeit : Ohne Batterie
Tone Corrector : Nein
Optionale Module : Nein

Audio Anschlüsse

Cinch-Eingang : Nein
XLR eingang : Nein
Eintrag jack : Nein
Interner Phono-Eingang : Nein
Eintrag HDMI : Nein
Eintrag USB : Nein
Digitaleingang : Nein
konfigurierbarer Eingang : Nein
Kopfhörerausgang : Nein
Cinch ausgang Pre out : Nein
Meldeausgang : Nein
XLR Ausgang Pre out : Nein
Subwoofer-Ausgang : Nein

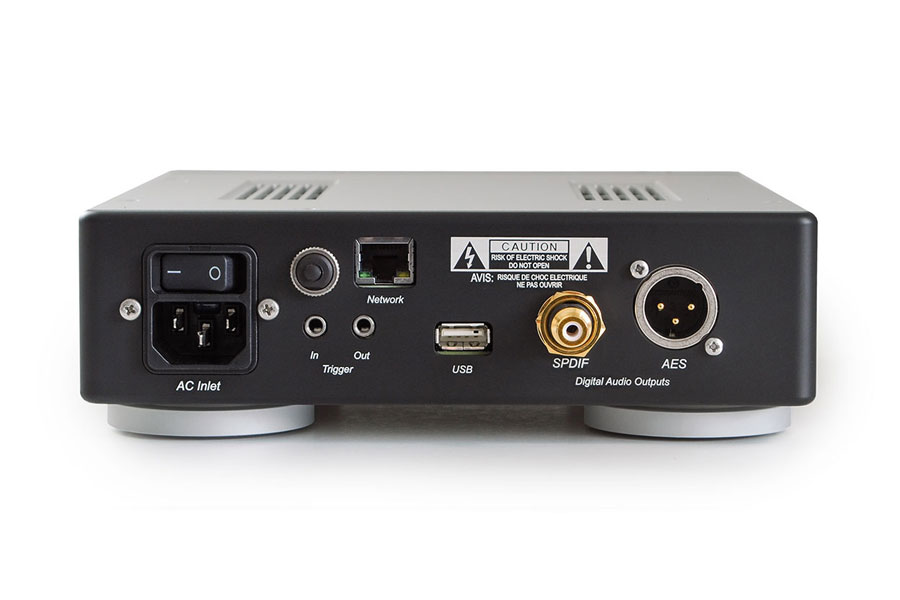

digitaler ausgang : 1 AES/EBU und 1 SPDIF
Ausgang USB : 1
Ausgang HDMI : Nein
Sortie Exakt link : Nein
Online-Service : ROON
Radio : Nein
Bluetooth : Nein
NFC : Nein
AirPlay : Nein
Chromecast : Nein

Daten Anschlüsse

RJ45/Lan Port : 1
IR in : Nein
IR out : Nein
Trigger : 1
RS 232 : Nein
Control bus : Nein
WiFi : Yes with wifi Dongle not delivered
Software-Update : Ja
kompatible Anwendung : Ja
Multiroom : Nein
Raumanpassung : Nein

Größe

Größe (HxBxT) : 5 x 20 x 22 cm
Zubehör : Power cord
Veredelung : Aluminum
Gewicht : 2,26 kg
Garantie : 5 Jahr
